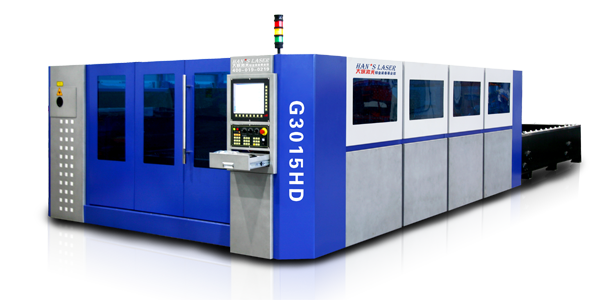

G3015HD Series is equipped with Gantry structure and dual drive,its Perfect dynamics provide every customer with superior quality and high profitability .
| MODEL | G3015HD |
| Processing surface (L × W) | 3000 mm × 1500 mm |
| X axle stroke | 3050 mm |
| Y axle stroke | 1525 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| Maximum positioning speed of X and Y axis | 169 m/min |
| Weight of CNC laser cutter | 10T |
| X/Y axis max. acceleration | 1.2G |
| Maximum load of worktable | 900 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 9100mm*3000mm*1850mm |
Application: Carbon Steel, stainless steel, Aluminum, galvanized Plate, electrolytic plate, silicon steel, Titanium Alloy, PVC, Acrylic ,ABS, wood and other non-metal material.
