1 High cutting speed and accuracy, dual servo motor are collocated for smooth motion, high precision driving system is equipped for High cutting speed and accuracy.
2 Wide cutting range, in addition to the conventional materials, it could also be used in high reflection processing with anti-reflection device collocated, which could meet the market needs for high reflection cutting.
3 Auto surveillance Controlled by SCM, its feedback system is 5 times faster than PLC
4 Low running cost The photoelectric conversion rate could reach 24%, compressed air processing is also available for Stainless and Aluminum.

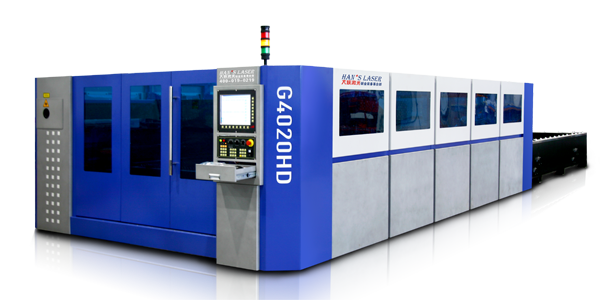

| MODEL | G4020HD |
| Processing surface (L × W) | 4000 mm × 2000 mm |
| X axle stroke | 4050 mm |
| Y axle stroke | 2020 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| Maximum positioning speed of X and Y axis | 140 m/min |
| Weight of CNC laser cutter | 14T |
| X/Y axis max. acceleration | 1.2G |
| Maximum load of worktable | 1300 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 11400mm*3400mm*2000mm |
Application: Carbon Steel, stainless steel, Aluminum(Anti-reflection device collocated), galvanized Plate, electrolytic plate, silicon steel, Titanium Alloy, PVC, Acrylic ,ABS, wood and other non-metal material.
