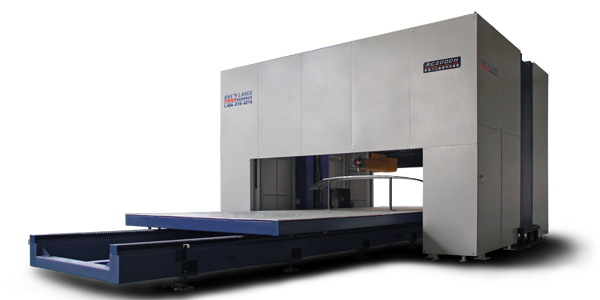

3D Laser Cutter RC1500H
3D Laser Cutter

Light, Electricity and mechanics, this trilogy is highly integrated in Han’s Robot 3-D Laser cutting system, transmitted by fiber laser; it could flexibly process on complicated work piece and accordingly results in lower purchase and operation cost.

3-D laser cutting could not only save the cost on sampling and fixture, but also shorten the production preparation cycle. Its high quality, accuracy and efficiency make it free of reprocessing.

  • High integration between fiber laser and industrial robot, flexible processing
  • 3-D cutting & one-time forming
  • Centralized operation, fast motion, high accuracy and quality and stability
  • Working Intensity amelioration, manually lower requirement
  • 0 maintenance ,24 hours operation
Model RC1500H RC1500G RC2000H(G)
Type ABB2400/16 ABB2400L Staubli RX160L
Radius 1550mm 1800mm  2010mm
Installation Style Hang-up  Ground Hang-up  Ground Hang-up  Ground
Repetitive Location Speed ±0.06mm ±0.06mm ±0.05mm

Tooling and hardware, etc.
