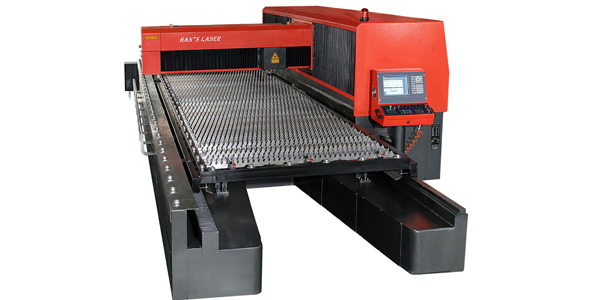

B6015 series laser cutter adopts an open structure with flying optical path, which has good accessibility and is able to cut circular, square and oval tube with a rotary axis.
Cantilever Structure
Good openness, easy to load and unload.
Able to cut circular, square and oval tube with a rotary axis.
| MODEL | B6015 |
| Processing surface (L × W) | 6000 mm × 1500 mm |
| X axle stroke | 3040 mm |
| Y axle stroke | 1530 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| U axis repeat location accuracy | ±0.05 mm(3000mm) |
| Maximum positioning speed of X and Y axis | 85 m/min |
| Weight of CNC laser cutter | 11T |
| Maximum load of worktable | 1800 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 820000 mm *3300 mm *1760 mm |
B6015 series laser cutter is widely used in sheet metal processing, machinery manufacturing, oil machinery, architectural ornament, kitchen utensil and metallic industries.
