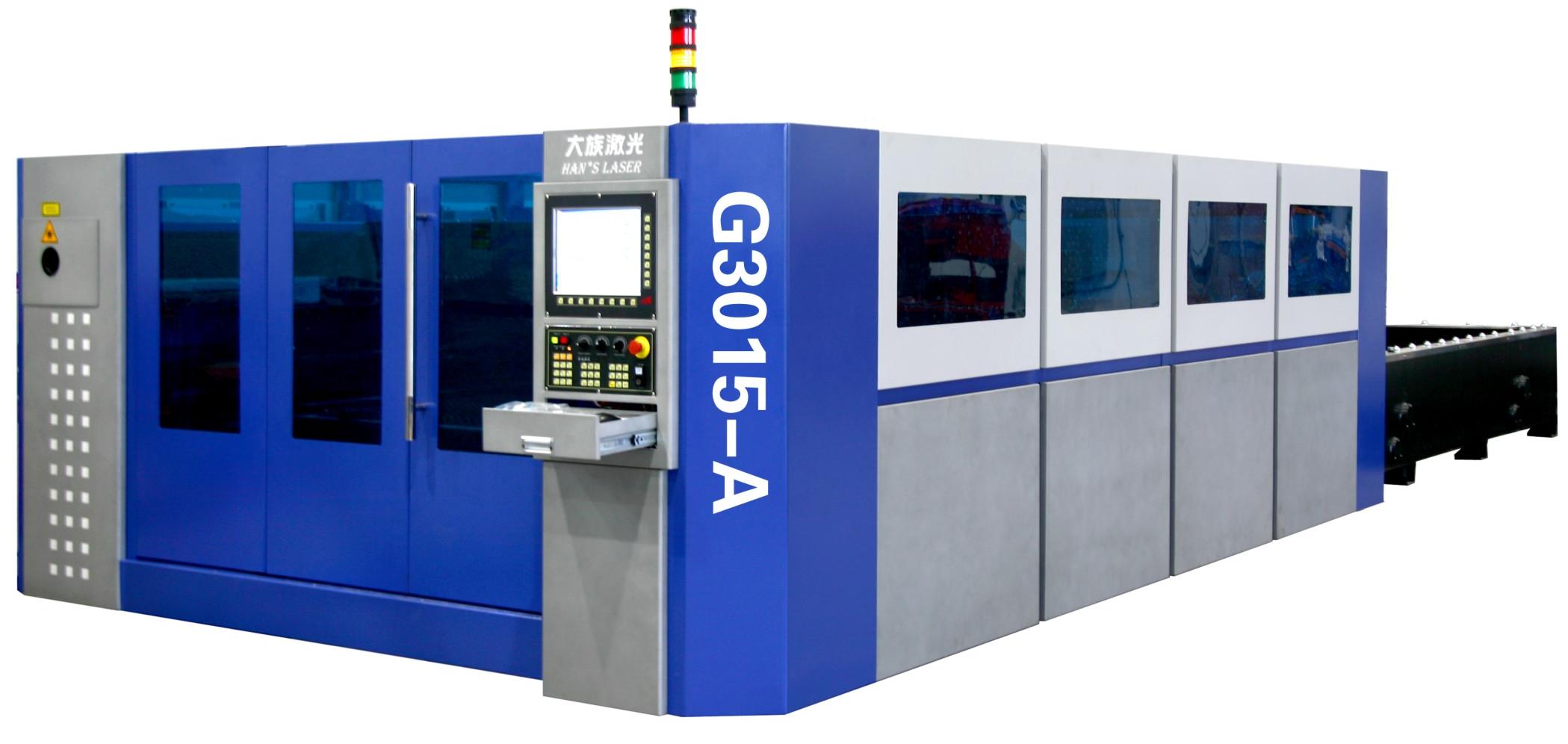

G3015A laser cutter –is jointly developed by Germany, Sweden, and China – is the first one adopts the incentive technology of independent voltage switch power supply and the axial rapid flow technology in China. CST series laser machine is in the lead of photoelectric conversion rate, gas consumption, and quality of light beam and processing ability in China.
| MODEL | G3015-A |
| Processing surface (L × W) | 3000 mm × 1500 mm |
| X axle stroke | 3050 mm |
| Y axle stroke | 1525 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| Maximum positioning speed of X and Y axis | 120 m/min |
| Weight of CNC laser cutter | 14T |
| Maximum load of worktable | 900 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 9200 mm *3040 mm *1850 mm |
Application: Carbon Steel, stainless steel, Aluminum,galvanized Plate, electrolytic plate, silicon steel, Titanium Alloy, PVC, Acrylic ,ABS, wood and other non-metal material,and is widely used in mechanics, forestry engineering, electronic appliance.
