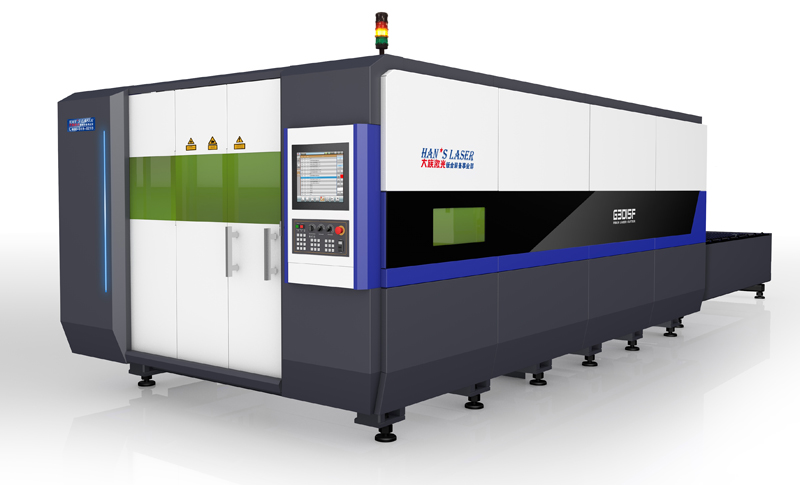

The G3015F Series Fiber Laser Cutter, initiated by Han’s Laser in China, is a mature product which has reached the international advanced level. In 2012, G3015F was awarded the Top Ten Innovative Product Award in machine tools industry. The series products have incomparable advantages with powerful cutting capacity, flying cutting speed, low operation cost, excellent stability, high-quality processing and strong adaptability.
l Highest-efficiency fiber laser cutter, the specialist in sheet metal cutting.
l Low operation cost and free of maintenance.
l The Fourth Generation fiber laser cutter, create a new era of sheet metal processing.
High cutting speed 40m/min for 1mm thickness stainless steel. 85m/min for 0.5mm thickness stainless steel.
High performance Fiber transmission and flexible processing; Capable of cutting any shape of materials with high quality; Suitable for cutting brass, aluminum and other high reflecting materials.
High cost performance High cutting speed; Low running cost, fast paying you back for your investment.
Low air consumption Lower power and more environmental; Power consumption is only 20% to 30% of CO2 laser cutter.
Free of maintenance No reflecting mirror and no need to adjust the light path.
| MODEL | G3015F |
| Processing surface (L × W) | 3000 mm×1500 mm |
| X axle stroke | 3050 mm |
| Y axle stroke | 1525 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| Maximum positioning speed of X and Y axis | 169 m/min |
| Weight of CNC laser cutter | 10T |
| X/Y axis max. acceleration | 1.5G |
| Maximum load of worktable | 900 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 9050mm*3000mm*2000mm |
The G3015F Series Fiber Laser Cutter is widely used in metal working in different industries, auto ,steel, construction machines ,elevator and other industries. It has earned many famous customers worldwide , including Hitachi, Benz Auto and so on.
Since Han’s Laser launched the first high power fiber laser cutter in 2009, it has installed over 600 fiber cutters in total worldwide and dominates more than 90% market share of China. In high power cutting area, Han’s Laser is pushing forward the development of the whole laser cutting industry and created a new era for sheet metal processing. Now it is leading the world trend of fiber laser cutting systems.
