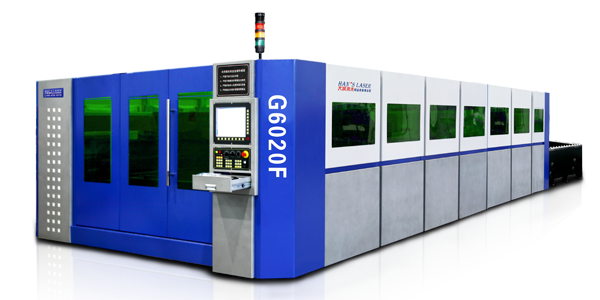

G6020F Series Fiber Laser Cutter owns all good genes of Han’s Laser cutters. It’s capable of cutting 6m*2m sheet plate with good dynamic performance and fast servo response. G6020F can realize extremely high cutting efficiency with high-powered fiber laser generators.
Han’s Laser has 6 years’ experience in fiber laser cutting and installed more than 600 fiber laser cutters. We can also offer customized products and service according to your needs.
High cutting speed 40m/min for 1mm thickness stainless steel. 85m/min for 0.5mm thickness stainless steel.
High performance Fiber transmission and flexible processing;capable of cutting any shape of materials with high quality;suitable for cutting brass, aluminum and other high reflecting materials.
High cost performance High cutting speed and low running cost speed up, fast paying you back for your investment.
Low air consumption Save power and more environmental; extremely low power consumption is only 20% to 30% of CO2 laser cutter.
Free of maintenance No reflecting mirror and no need to adjust the light path.
| MODEL | G6020F |
| Processing surface (L × W) | 6000 mm × 2000 mm |
| X axle stroke | 6030 mm |
| Y axle stroke | 2020 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| Maximum positioning speed of X and Y axis | 169 m/min |
| Weight of CNC laser cutter | 18T |
| X/Y axis max. acceleration | 1.2G |
| Maximum load of worktable | 2400 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 14800mm*3500mm*2000mm |
G6020F Series Fiber Laser Cutter is widely used in metal working in different industries, like sheet metal, construction machines and other industries.
