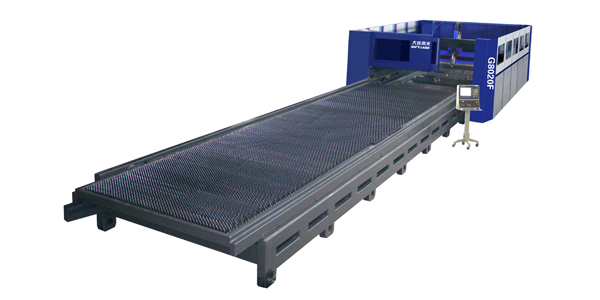

G8020F series fiber laser cutter is a large size cutter and capable of cutting 8m*2m sheet plate.
l Shape large size parts one time,large size processing area
l Optimized configuration, powerful cutting capacity
High cutting speed 40m/min for 1mm thickness stainless steel. 85m/min for 0.5mm thickness stainless steel.
High performance Fiber transmission and flexible processing;capable of cutting any shape of materials with high quality;suitable for cutting brass, aluminum and other high reflecting materials.
High cost performance High cutting speed and low running cost speed up, fast paying you back for your investment.
Low air consumption Save power and more environmental; extremely low power consumption is only 20% to 30% of CO2 laser cutter.
Free of maintenance No reflecting mirror and no need to adjust the light path.
| MODEL | G8020F |
| Processing surface (L × W) | 8000 mm × 2000 mm |
| X axle stroke | 4030 mm |
| Y axle stroke | 2020 mm |
| Z axle stroke | 120 mm |
| Positioning accuracy of X, Y and Z axis | ±0.03 mm/m |
| Repeated location accuracy of X, Y and Z axis | ±0.02 mm |
| Maximum positioning speed of X and Y axis | 140 m/min |
| Weight of CNC laser cutter | 12T |
| X/Y axis max. acceleration | 1.2G |
| Maximum load of worktable | 3000 kg |
| Phase | 3 |
| Rating voltage of power supply | 380 V |
| Frequency | 50 Hz |
| Total protection level of power supply | IP54 |
| Dimension (L*W*H) | 18000mm*3500mm*2000mm |
G8020F Series Fiber Laser Cutter is widely used in metal working in different industries, like sheet metal, shipbuilding ,construction machines and other industries.
